Water misting systems have proven to be more effective than conventional methods for cooling outdoor locations like a patio, green house, waiting line, or dining area.
The concept incorporates water and heat to provide cooling through “flash evaporationâ€. Specially designed mist nozzles operate under high pressure to produce tiny water droplets reducing the surrounding air temperature.
Our custom stainless steel mist line provides cooling to the area from our high-pressure pump assembly. When combined with mist nozzles, this mist system can achieve maximum cooling without wetting or residual moisture.
Misting systems can also provide a dynamic visual effect to any home patio, or commercial location. Mist & Cool USA offers one of the largest selections of Misting equipment, and components on the market today for home or commercial use.
Whether it is one of our portable misting fans to a complete misting system, Mist & Cool USA can handle most any indoor or outdoor home, patio, green house, industrial, or commercial application.
A misting line system can be defined as a series of misting nozzles that are placed either in stainless or plastic tubing and pressurized to provide a fine spray, usually with droplets between 15 microns and 50 microns in size. To accomplish this, the mist system requires pressure of at least 500 psi.
Product description:

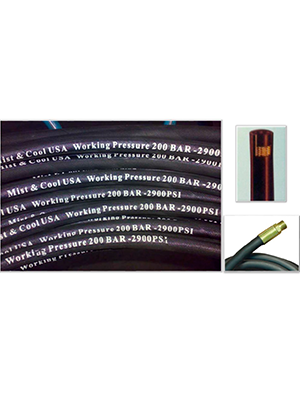

HYDRAULIC PIPES HYDRAULIC PIPES
Made from the highest quality and specially designed for applications which require higher working pressures, high quality synthetic rubber compounds, abrasion and weather resistant seamless synthetic rubber reinforcement and 1 high tensile steel wire braid.
Inside Diameter: 6.4mm Over Cover Diameter: 13.4mm Max Working Pressure: 2900 psi / 200 bar Min. Burst Pressure: 13060 psi / 900 bar Minimum Bend Radius: 3.9’’/ 100mm Tube: Seamless Synthetic Rubber Reinforcement 1 High Tensil Steel Wire Braid
Product description:

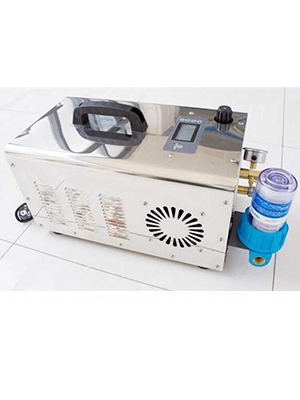

1 LPM MISTING PUMP 1 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: PC Code: 2802 Output LPM: 1 GPM: 0.26 Pressure: 60 Bar Power HP: 0.5 Kilowatt: 0.30 RPM: 1400 Volt: 220 Weight: 13 Dimension: 480*275*335mm
Product description:
STAINLESS STEEL PIPE STAINLESS STEEL PIPE
Stainless steel tubing is designed for the ultimate in quality and durability and represents the highest quality materials available for the installation of a high-pressure mist system. This mist tubing can withstand pressures in excess of 2900 psi and is recommended for mist systems that utilize treated water or chemical injection
Internal Filter Tip – 25 micron Fitment : 10 -24 UNC Nozzle Adapter Diameter: 10mm 3/8’’ Type 316 Seamless
Product description:
DUAL WATER FILTER DUAL WATER FILTER
Wound polypropylene cartridge filters dirt and sediments, and granular activated carbon cartridge removes of chlorine, organic chemicals, insecticides, pesticides, herbicides, industrial solvents, and unpleasant taste and odor.
INDUSTRIAL WATER FILTERS COLOR: WHITE/BLUE DIMENSION: W-16CM*D-41CM*H-29CM
Product description:
COMPRESSION FITTINGS (FEMALE) COMPRESSION FITTINGS (FEMALE)
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting - Female For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTING (CONNECTOR) COMPRESSION FITTING (CONNECTOR)
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting – Connector For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI
Product description:

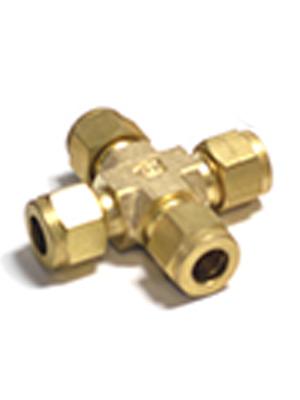

COMPRESSION FITTING (4 WAY CONNE COMPRESSION FITTING (4 WAY CONNE
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting -4 Way Connector For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 unc or 12-24 unc
Product description:
COMPRESSION FITTINGS (SINGLE NOZ COMPRESSION FITTINGS (SINGLE NOZ
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting - Single Nozzles For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (DOUBLE NOZ COMPRESSION FITTINGS (DOUBLE NOZ
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” & ¼’’Compression Fitting – Double Nozzles For Steel, Copper and Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (3 WAY CLUS COMPRESSION FITTINGS (3 WAY CLUS
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting -3 Way Cluster For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (6 WAY CLUS COMPRESSION FITTINGS (6 WAY CLUS
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting -6 Way Cluster For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (END PLUG) COMPRESSION FITTINGS (END PLUG)
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting - End Plug For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (ELBOW) COMPRESSION FITTINGS (ELBOW)
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” and ¼’’ Compression Fitting - Elbow For Steel, Copper And Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
HYDRAULIC CONNECTOR HYDRAULIC CONNECTOR
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
Stainless Steel Corrosion Resistant
Product description:
CONTROL PANEL WITH TIMER AND AUT CONTROL PANEL WITH TIMER AND AUT
Safe To Use.
Door Mounted Operator Devices.
With Timer And Automation.
Circuit Breakers For Pump, Compressor, & Alarm Circuits. External Run/Test/Mute Switch Standard. Externally Mounted Audible Alarm. With Timer And Automation.
Product description:
SOLENOID VALVE 90BAR SOLENOID VALVE 90BAR
Is a two-way, normally closed, direct acting valve and does not require a minimum differential pressure to operate. The valve body can be customized to any type of plastic to meet specific operating conditions.
Orifice: 1.5 mm Pressure: 90 Bar Temperature Max: 80 ºC Pipe Size: 3/8’’ Pressure: 120 Bar Voltage: 220 V
Product description:
SOLENOID VALVE 10BAR SOLENOID VALVE 10BAR
Is a two-way, normally closed, direct acting valve and does not require a minimum differential pressure to operate. The valve body can be customized to any type of plastic to meet specific operating conditions.
Orifice: 1.5 mm Pressure: 10 Bar Temperature Max: 80 ºC Pipe Size: 3/8’’ Pressure: 120 Bar Voltage: 220 V
Product description:
3 LPM MISTING PUMP 3 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: PC Output LPM: 2 GPM: 0.26 Pressure: 60 Bar PSI: 1145 Power HP: 0.5 Kilowatt: 0.30 RPM: 1400 Volt: 220 Weight: 13 Dimension: 480*275*335mm
Product description:

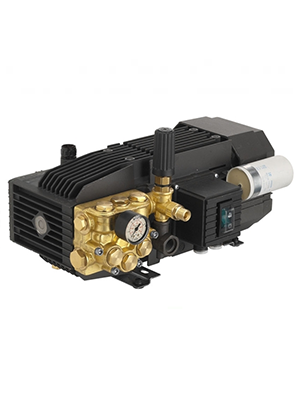

8 LPM MISTING PUMP 8 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: HPE 8.12 Output: 8 LPM GPM: 2.1 Pressure: 120 Bar PSI: 174 Power: 2.5 HP Kilowatt: 1.8 RPM: 1450 Volts: 230 V Weight: 19.2kg
Product description:
4 LPM MISTING PUMP 4 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: HPE-M Output: 4 LPM GPM: 1.06 Pressure: 80 Bar PSI: 1145 Power: 1 HP Kilowatt: 0.7 RPM: 1450 Volts: 230 V Weight: 22kg
Product description:
11 LPM MISTING PUMP 11 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: HPE-M 11.07 Code: 22895 Output LPM: 11 GPM: 2.90 PSI: 1015 Pressure Bar: 70 Power HP: 2.2 Kilowatt: 1.65 RPM: 1450 Volt: 230 Weight kg: 22
Product description:
15 LPM MISTING PUMP 15 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: HRW 15.15 ET Output: 15 LPM GPM: 3.96 Pressure: 150 Bar PSI: 2200 Power: 5.5 HP Kilowatt: 4 RPM: 1450 Volts: 415 V Weight: 30kg
Product description:
30 LPM MISTING PUMP 30 LPM MISTING PUMP
High pressure misting pumps are specially designed for misting systems with high quality components and available in different capacity.
Pump Type: HXW 30.10 Output: 30 LPM MPa: 10-12 Pressure: 100 Bar PSI: 1450 Power: 8.12 HP Kilowatt: 5.5 RPM: 1450 V olts: 415 V Weight: 39 kg
Product description:
COMPRESSION FITTINGS (TEE) COMPRESSION FITTINGS (TEE)
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” & ¼’’Compression Fitting – Tee For Steel, Copper and Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (END PLUG S COMPRESSION FITTINGS (END PLUG S
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” & ¼’’Compression Fitting – End Plug Side Nozzle For Steel, Copper and Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
Product description:
COMPRESSION FITTINGS (MALE) COMPRESSION FITTINGS (MALE)
Compression fittings are special type of coupling, usually used to connect two pipes or a pipe to a fixture or valve. a compression fitting tightens down a sleeve or ferrule over a joint to prevent leakage. these pipe fittings are very strong and reliable and can be put on using just a pair of wrenches. these fittings do not require any heating and go well even with wet pipes.
3/8” & ¼’’Compression Fitting – Male Connector For Steel, Copper and Nylon Tubing Pressure Capacity – Above 1000 PSI Nozzle Thread – 10/24 UNC or 12-24 UNC
